How to use?

Development environment setup:



Using the Windows environment to develop,

Installation Steps:

1. Install the Arduino IDE, can download the Arduino IDE client from arduino.cc.

2. Install the Git GUI, can download the Git GUI client from git-scm.com.

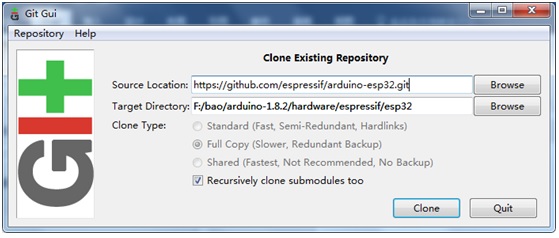

3. Open Git GUI, and select Clone Existing Repository.

Type the https://github.com/espressif/arduino-esp32.git in the Source Location option

Click the Browse in the Target Directory option and select the /hardware folder under the Arduino IDE.

And then add the /espressif/esp32 after the File path. In fact, create a folder, but cannot create by themselves, need to fill out to create in the software.

Take my present path for example, the complete path of Target Directory is     F:/bao/arduino-1.8.2/hardware/espressif/esp32

1

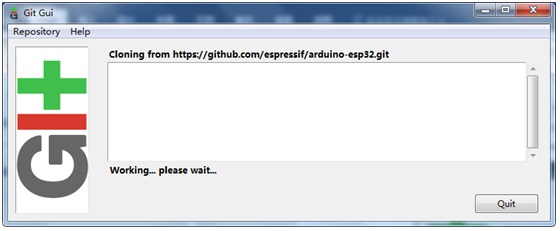

4. Click the Clone, wait for the installation to complete.

2

5. Installation completed.

3

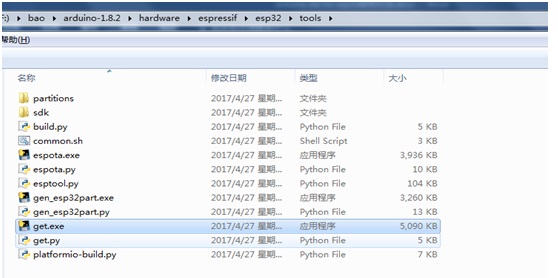

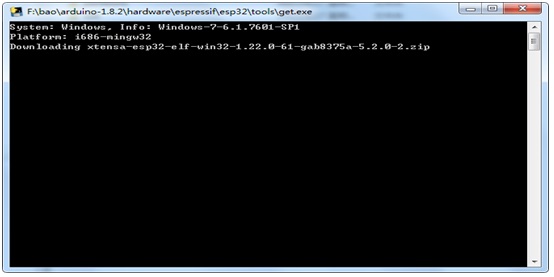

6. Click, open tools folder of defined directory just now, click get.exe. start to download Library file

4

5

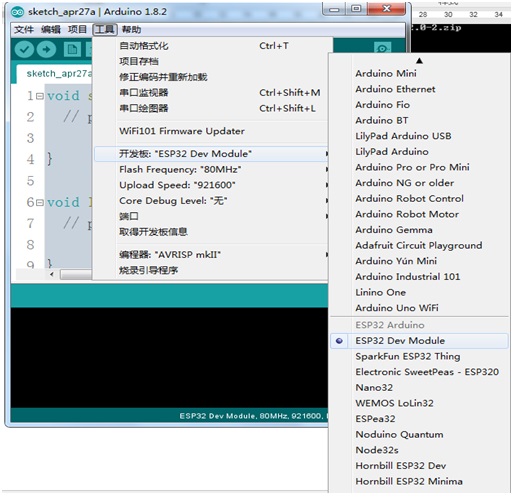

7. After the download completion, open Arduino IDE then you can see the boards can select ESP 32 development board

6

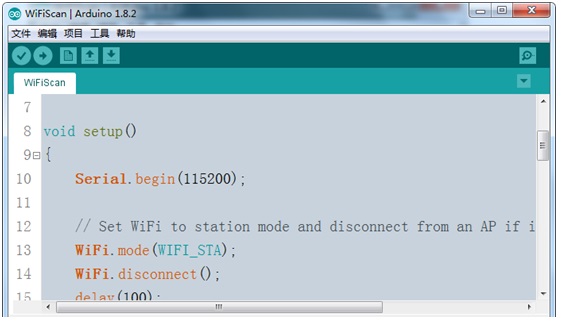

8. Select ESP 32 Dev Module, open example WiFi Scan and click upload

7

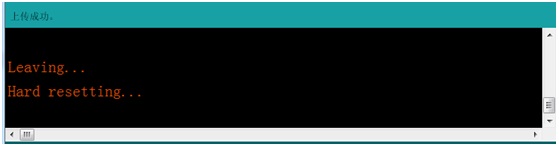

Show download is completed.

8

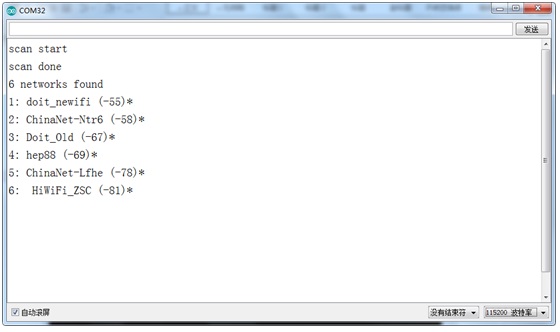

Open Serial port assistant so that you can see the scaned wifi information

9

More details, please visit: https://github.com/espressif/arduino-esp32
